Applicable materials:
This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.
Main Structure Character:
1. Independent rotary disk-type unwind and rewind stations.
2.Printing:Vertical register system, high precision and less waste.Doctor blade plays with double-axis.Driven by servo motor.
3.Dry oven:Patent technology,Oven using high temperature axial fans built-in heating.

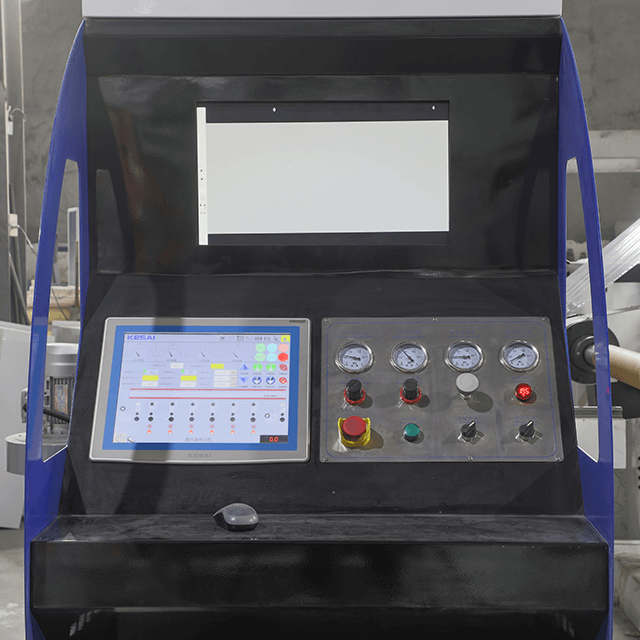

4. Servo motor controlling system.
5. Automatic splicing and cutting.
6. Floating roller to adjust tension
7. Unwinding and rewinding air shaft
8. Pneumatic pressing roller.
9. Shaftess printing cylinder.
10. Automatic registration with video inspection.
11. Heavy-duty doctor blade.
12. Pneumatic ink pump.
13. Electric heating .
14.Independent drying and suction exhausting system,air circulated,max recycled rate 50%,outside oven increase the amount of blowing air to ensure the drying.
15. Max speed: 300 m/min
Main Technical Parameters | |
Model | GWASY-ELS |
Printing colors | 8 (user can increase or decrease) |
Diamter of pring cylinder | 120-320mm |
Max.printing width | 1050mm |
diameter of unwind/rewind | 800mm |
Machine speed | 320 m/min |
Max.printing speed | 280-300m/min |
Register precision | ±0.08mm |
Drying method | heat pump heating device |
Total power | 150kw |
Weight of machine | 40T |
Overall dimension | 18500 × 3300 × 3370mm |
